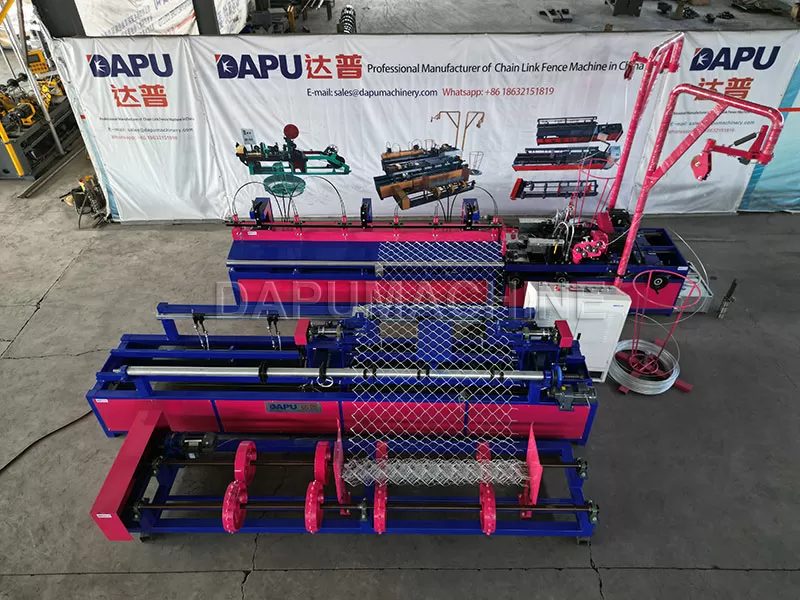

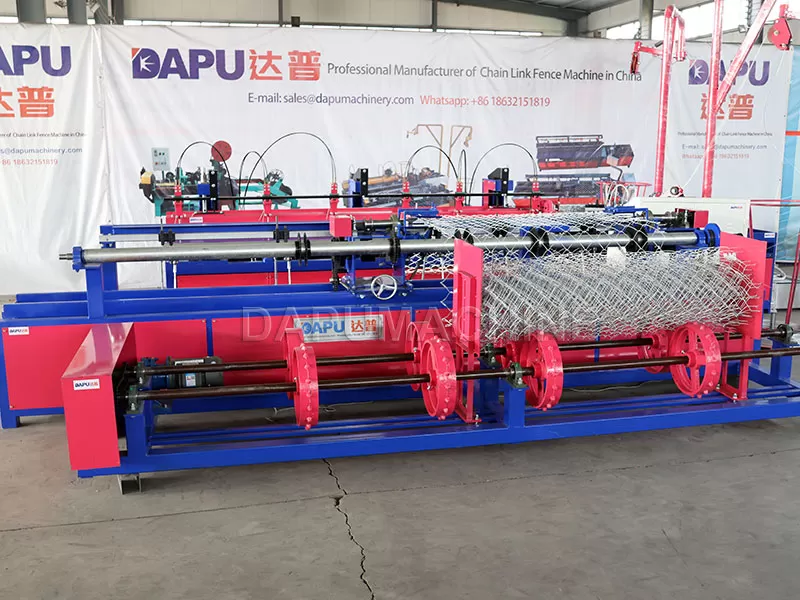

Chain link fence machine

DAPU's Chain Link Fence Machine offers precise CNC control for mesh width and length, with Delta servo motor-driven wire feeding. It features fully automatic twist/knuckle mesh sides and an optional compacting machine for efficient packing. Ideal for producing chain link fences used in residential, industrial, and security applications.

Inquiry Chat now

Privacy Policy: Samples are free within a certain price range

Description & Video

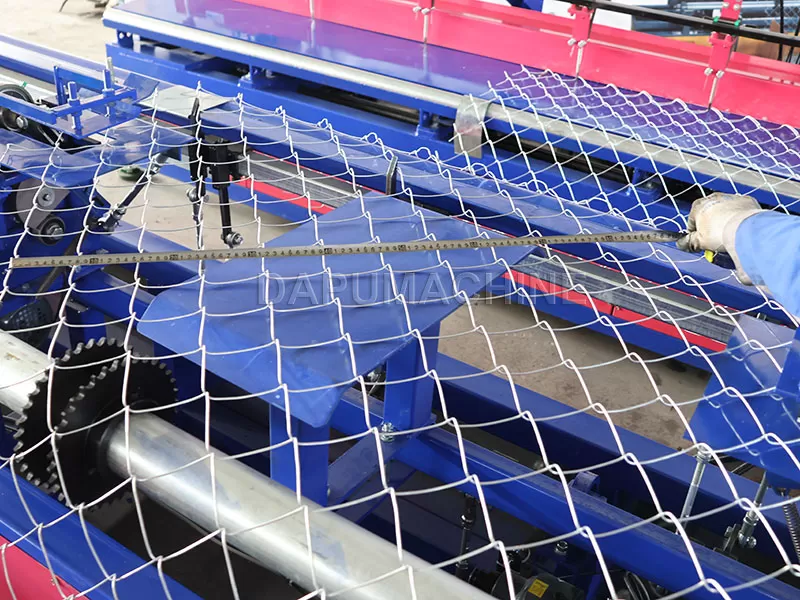

1.Mesh width and mesh length are CNC adjusted.

2.Delta brand servo motor control wire feeding.

3.Fully automatic twist/ knuckle mesh sides.

4.Compacting machine is optional, save packing space.

5.The machine color supports customization.

Technical Parameter

Model DP25-100 DP20-100D DP20-100S
Wire Quantity Double wire Double wire Single wire
Servo motor 5.5kw*1 4.5kw*2 3.7kw*1/4.5kw*1
Wire diameter 1.8-4.0mm 1.5-4.5mm 1.5-4.0mm
Mesh opening 25-100mm 20-100mm/40-120mm 20-100mm/40-120mm
Mesh width Max.2m/3m/4m Max.2m/3m/4m/6m Max.2m/3m/4m/6m
Mesh length Max.30m Max.30m Max.30m
Capacity 120-180m²/hour 80-260m²/hour 70-100m²/hour
Raw material Galvanized wire or PVC coated wire Galvanized wire or PVC coated wire Galvanized wire or PVC coated wire
Weight 3.9T/4.2T 3.2T/3.5T 2.2T/2.5T
