Welded Gabion Box Machine 3-6mm

The DAPU Fully Automatic Welded Gabion Box Machine 3-6mm features advanced welding technology, ensuring precise, durable mesh production for construction, erosion control, and landscaping applications.

Description & Video

1.Vertical wire feeding: pre-straightened&pre-cut wire, fed manually.

2.Horizontal wire feeding: pre-straightened&pre-cut wire, cross wire feeder automatically.

3.Vertical wire space adjust: loosen screw, manually move the welding electrodes.

4.Horizontal wire space adjust: servo motor CNC adjust.

5.Mesh type: mesh panel.

6.Usage: Welded gabion box, steel rebar mesh, bed mesh, 3D fence panel production.

Technical Parameter

[ux_table]
Model DP-FP-1200A DP-FP-2000A
Wire diameter Φ 3-6mm 3-6mm
Vertical wire space 50-300mm 50-300mm
 (Manual adjust)  (Manual adjust)
Horizontal wire space 25-300mm (CNC adjust) 25-300mm (CNC adjust)
Mesh width Max.1200mm Max.2000mm
Mesh length Max.6m Max.6m
Welding speed Max.50-70 times/min Max.50-70 times/min

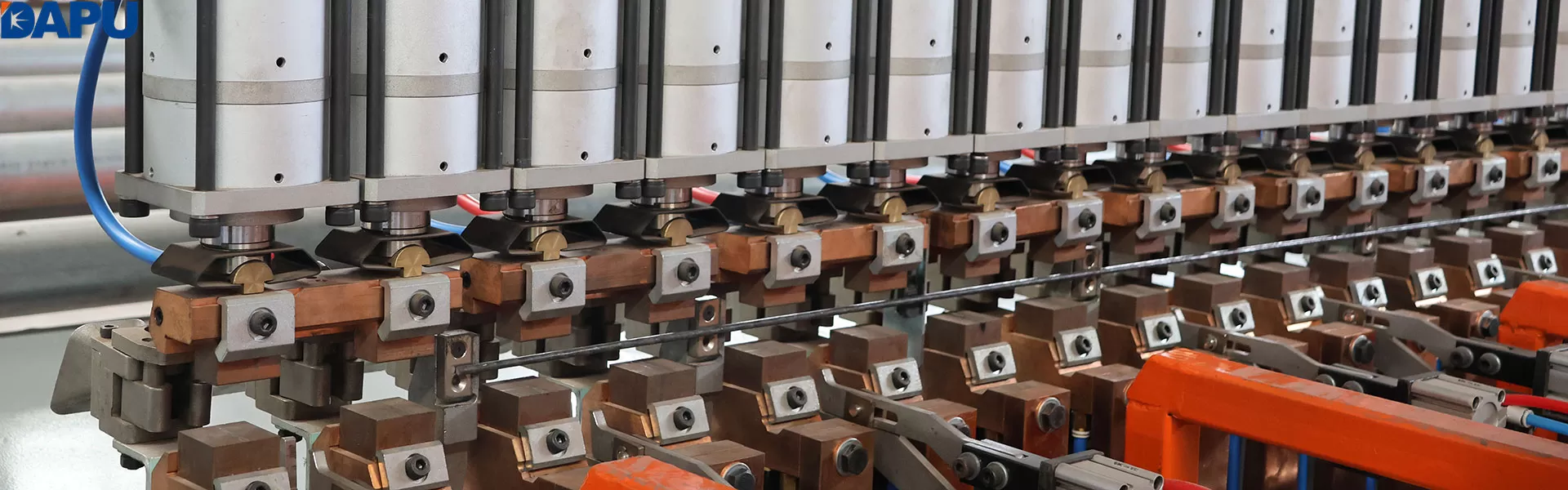

Welding electrode material Upper: Red copper Upper: Red copper
Lower: Chromium Zirconium copper (CuCrZr) Lower: Chromium Zirconium copper (CuCrZr)
Welding electrode size 20*120mm (Upper) 20*120mm (Upper)
30x30x30mm (Lower) 30x30x30mm (Lower)
Welding electrodes 25pcs 41pcs
Welding transformer 150kva*3pcs 150kva*5pcs
(separate control) (separate control)
Delivery time 35-45 days 35-45 days
[/ux_table]
